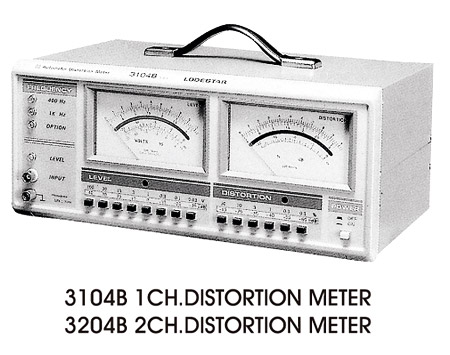

Automatic Distortion Meter (3104B, 3204B)
Specifications:
• Distortion measurement
o Range:
0.01% to 30%.
0.1 / 0.3 / 1/3 / 10 / 30% of full scale.
o Frequency range: 400Hz ±10%, 1,000Hz ±10% (HPF).
o Optional:
333Hz filter for third harmonic distortion (BPF).
333Hz filter for total harmonic distortion (HPF).
o Input level range:
3mV to 100V.
Ratio measure range: 20dB.
o Automatic switching range of frequency:
Fundamental frequency (fo) ±10%.
Fundamental rejection: > -80dB at fo ±5%, > -70dB at fo ±1%.
o Harmonic accuracy: ±0.5dB between 1.8 fo and 20KHz.
o Accuracy: ±5% of full scale.
o Monitor output: 1Vrms (at full scale).
• Level measurement
o Measurement range:
0 to 100V.
0.03 / 0.1 / 0.3 / 1/3 / 30 / 100V of full scale.
o Frequency response:
±0.5dB between 20 to 50KHz.
±1dB between 20 to 100KHz.
o Input impedance: 100KΩ ±5% Unbalance < 70pF.
o Accuracy: ±3% of full scale.
o Power supply: AC 115 / 230V ±10% 50 / 60Hz approx 4VA.
o Size & weight
220 (W) x 280 (H) x 2,600 (D) mm.
Approx 5kgs.
o Accessories: BNC-clip x 2.
