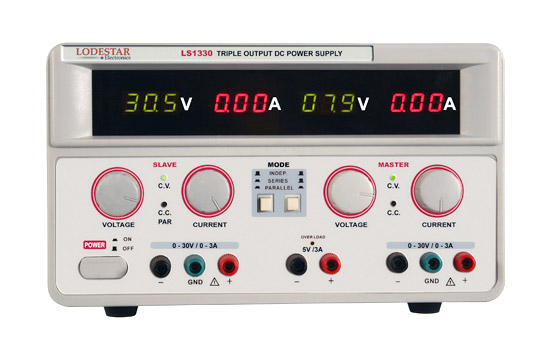

• Fully featured adjustable tripe output C power supply.
• Operates as three separate power supplies. Each power supply is completely isolated from the other two. Each output can be flosted and either polarity may be grounded.
• Simultaneously monitor output current and voltage of the 2 variable outputs.
• Series tracking and parallel mode operation to output up to 60V 6A (or double the output capacity).
• CV / CC operation.
• Overload and reverse polarity protection.
• Excellent regulation and low ripple characteristics.
| Model |
LS - 1330 |
LS - 1530 |
| Adjustable Triple Output Voltage (CV) |
2 x 0 - 30V
1 x 5V fixed |
2 x 0 - 30V
1 x 5V fixed |
| Adjustable Triple Output Current (CC) |
2 x 0 - 3A
1 x 3A fixed |
2 x 0 - 5A
1 x 3A fixed |
| Voltage Line Regulation ±10% |
≤ 0.01% + 3mV |
≤ 0.01% + 3mV |
| Voltage Load Regulation
(no load to full load) |
≤ 0.01% + 3mV |
≤ 0.01% + 3mV |
| Ripple & Noise |
≤ 1mVrms |
≤ 1mVrms |
| Adjustable Current Range |
5% to 100% |
5% to 100% |
| Current Line Regulation ±10% |
≤ 0.2% + 3mA |
≤ 0.2% + 3mA |
| Current Load Regulation |
≤ 0.2% + 3mA |
≤ 0.2% + 3mA |
| Display |
2 x 3 digital LED display |
2 x 3 digital LED display |
| Series & Parallel |
Yes |
Yes |
