Specifications:
• Constant voltage operation
o Line regulation: ≤ 0.01% + 5mV.
o Load regulation: ≤ 0.02% + 5mV.
o Ripple & noise: ≤ 2m Vrms.
o Temperature coefficient: 300ppm / °C.
• Constant current operation
o Line regulation: ≤ 0.2% + 3mV.
o Load regulation: ≤ 0.2% + 5mV (model: MPS-3010LK).
o Ripple & noise: ≤ 3m Vrms.
o Temperature coefficient: 500ppm / °C.
• LED
o Display accuracy
- Display: 3 digits panel meter.
- Voltmeter accuracy: ±0.5% of rdg + 2 digits.
- Ammeter accuracy: ±0.1% of rdg + 2 digits.
o Recover time: ≤ 100uS.
Features:
• Two digital panel meters.
• Overload and reverse polarity protection.
• Constant voltage, constant current, low ripple noise, low temperature drift.
• Preset current limited point.
• High efficient toroidal transformer.
| Model |
Constant Voltage (CV) |
Constant Current (CC) |

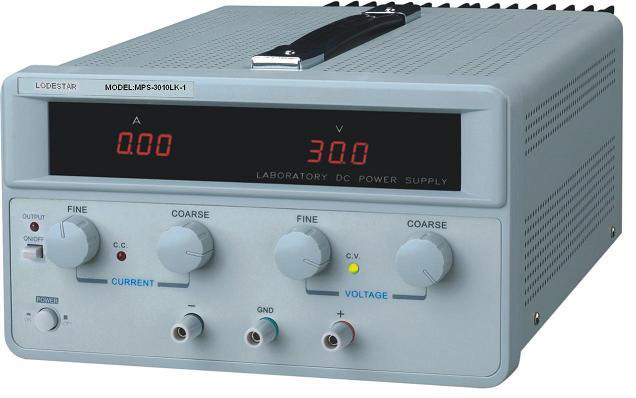

| MPS - 3010LK - 1 |
±0 ~ 30VDC |
±0 ~ 10A |
| MPS - 6003LK - 2 |
±0 ~ 60VDC |
±0 ~ 3A |
| MPS-6005LK-1 |
±0 ~ 60VDC |
±0 ~ 5A |
