Specifications:
• Output voltage: 0 ~ 30V.
• Maximum output current: 3A / 5A.
• Power supply: 110V / 220V switch selectable.
• Operation mode:
o Independent: Two independent outputs and 5V fixed output. Output from 0 to rating voltages and 0 to rating amperes.
o Series: Output from 0 to rating voltages at rating amperes each, output from 0 to double rating voltages at rating amperes.
o Parallel: Output from 0 to double rating amperes at rating voltages.
o Constant voltage operation.
o Output current range: 0 ~ rating voltage continuously adjustable.
• Voltage:
o Line regulation: ≤ 0.01% + 3mV.
o Load regulation: ≤ 0.01% + 3mV (rating current ≤ 3A), ≤ 0.02% + 5mV (rating current > 3A).
o Recovery time: ≤ 100uS.
o Ripple & noise: ≤ 1m Vrms (5Hz ~ 1MHz).
o Temperature coefficient: ≤ 300ppm / ¢XC.
o Constant current operation.
o Output current range: 0 ~ rating current continuously adjustable.
• Current
o Line regulation: ≤ 0.2% + 3mA.
o Load regulation: ≤ 0.2% + 3mA.
o Ripple current: ≤ 3mA Vrms.
• Tracking operation
o Parallel operation
Line regulation: ≤ 0.01% + 3mV.
Load regulation: ≤ 0.01% + 3mV (rating current ≤ 3A), ≤ 0.02% + 5mV (rating current > 3A).
o Series operation
Line regulation: ≤ 0.01% + 5mV.
Load regulation: ≤ 300mV.
Positive and negative supply: Salve tracking error ≤ 0.5% + 10mV of the master (no load, with load add loadregulation ≤ 300mV).
• Meter
o Display: 3 digits panel meter.
o Voltmeter accuracy: ≤ 0.5% of rdg + 2 digits.
o Ammeter accuracy: ≤ 1% of rdg + 2 digits.
• Fixed 5V / 3A output specifications
o Line regulation: ≤ +5mV.
o Load regulation: ≤ 10mV.
o Ripple & noise: ≤ 2m Vrms.
o Voltage accuracy: 5V +/- 0.25V.
o Output current: 3A.
o Operation temperature & humidity: 0¢XC ~ 40¢XC < 80%.
o Storage temperature & humidity: -10¢XC ~ 70¢XC < 70%.
Features:
• 0-30V, 0-3A / 5A dual channels adjustable and one fixed 5V / 3A output.
• Overload protection.
• Constant voltage, constant current, low ripple noise, low temperature drift.
• Pre-set current limited point.
• In tracking mode, both outputs are automatically connected in series or parallel without extra cables.
• In series mode, machine can be connected as positive and negative supply.
• Multi tune potentiometers, easy to setup voltage.
• High efficient toroidal transformer.
• Dual color four LED digital panel meters voltages and current display.
• MPS-3003LP has out control and preseting function.
Model |
Constant Voltage (CV) |
Constant Current (CC) |
Triple Output 5V / 3A |
Series & Parallel |

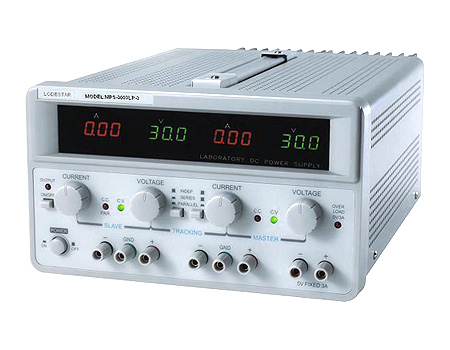

MPS - 3003LP - 3 |
0 - 30VDC |
0 - 3A |
Yes |
Yes |
MPS - 3005LP - 3 |
0 - 30VDC |
0 - 5A |
Yes |
Yes |
